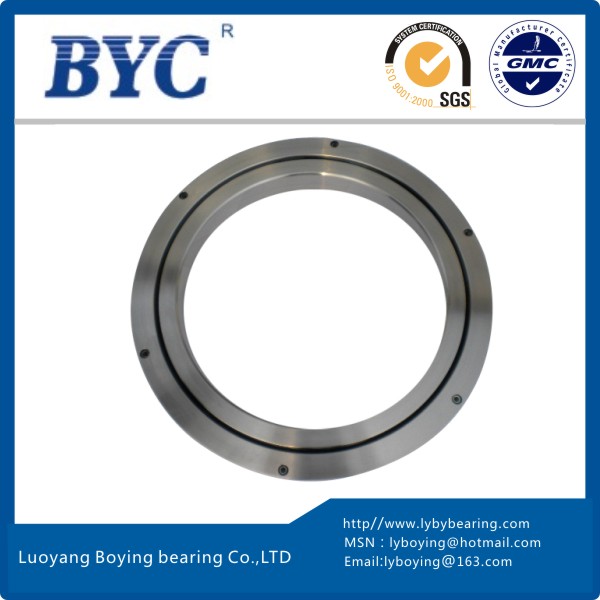

RB10020UUCC0 (IDxODxThick:100x150x20mm) Crossed Roller Bearings|Robotic arm use|BYC

Author： Release time：2016-05-12 Browse times：3077

RB10020UUCC0 (IDxODxThick:100x150x20mm) Crossed Roller Bearings\|Robotic arm use\|BYC produce
A . Crossed Roller Bearings Parameters
Brand-	BYC
Model number-	RB10020UUCC0
Inner ring(mm)-	100
Outer ring(mm)-	150
Width(mm)-	20
Weight(Kg)-	1.45
Materials-	GCR15/GCR15SiMn
Precision-	P5/P4/P2
Lubrication-	Grease lubrication
Rotating part-	Inner Ring Rotation
Load direction-	Multi-load
Structure-	Separable Outer Ring

B . RB10020 Crossed Roller Bearings Specification Sheet

Model Number	Main dimensions						Mounting dimensions		Basic load rating (radial)		weight
	Inner ring d (mm)	Outer ring D(mm)	Roller pitch circle dp(mm)	Width B(mm)	Greasing hole φ	Chamfer r(min)	ds	Dh	C kN	C0 kN	Kg
RB10020	100	150	123	20	1.5	1.5	113	133	33.1	50.9	1.45

C . RB type Crossed Roller Bearings Details
Product Features	BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
Series Introduction	RB standard type is a bearing with thinnest possible inner and outer rings because the outer ring is split while the inner ring is integrated into the main body. It is being used in cases where a high rotational accuracy of the inner ring is required.
Series Model No.	RB4010 RB4510 RB5013 RB6013 RB7013 RB8016 RB9016 RB10016 RB10020 RB11012 RB11015 RB11020 RB12016 RB12025 RB13015 RB13025 RB14016 RB14025 RB15013 RB15025 RB15030 RB16025 RB17020 RB18025 RB19025 RB20025 RB20030 RB20035 RB22025 RB24025 RB25025 RB25030 RB25040 RB30025 RB30035 RB30040 RB35020 RB40035 RB40040 RB45025 RB50025 RB50040 RB50050 RB60040 RB70045 RB80070 RB90070 RB1000110 RB1250110
Applications	Product Application ?Industrial Robotic arm,Reducer drive ?precision Turntable,NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ? Aviation equipment,Military radar etc

D . Installation for Cross roller Bearings
Installation for Cross roller Bearings-Click Here
