SX011824 (dxDxB:120x150x16mm) Crossed Roller Bearings|Robotic Bearings|BYC

Author： Release time：2016-05-19 Browse times：2923

SX011824 (dxDxB:120x150x16mm) Crossed Roller Bearings\|Robotic Bearings\|BYC
A . Crossed Roller Bearings Parameters
Brand-	BYC
Model number-	SX011824
Inner ring(mm)-	120
Outer ring(mm)-	150
Width(mm)-	16
Weight(Kg)-	0.8
Materials-	GCR15/GCR15SiMn
Precision-	P5/P4/P2
Lubrication-	Grease lubrication
Rotating part-	Inner Ring Rotation
Load direction-	Multi-load
Structure-	Outer ring split

B . SX011824 Crossed Roller Bearings Specification Sheet

Model Number	Main dimensions						Mounting dimensions		Basic load rating (radial)		weight
	Inner ring d (mm)	Outer ring D(mm)	Roller pitch circle dp(mm)	Width B(mm)	Greasing hole φ	Chamfer r(min)	ds	Dh	C kN	C0 kN	Kg
SX011824	120	150	135	16	1.5	1	134.4	135.6	27	59	0.8

C . SX type Crossed Roller Bearings Details

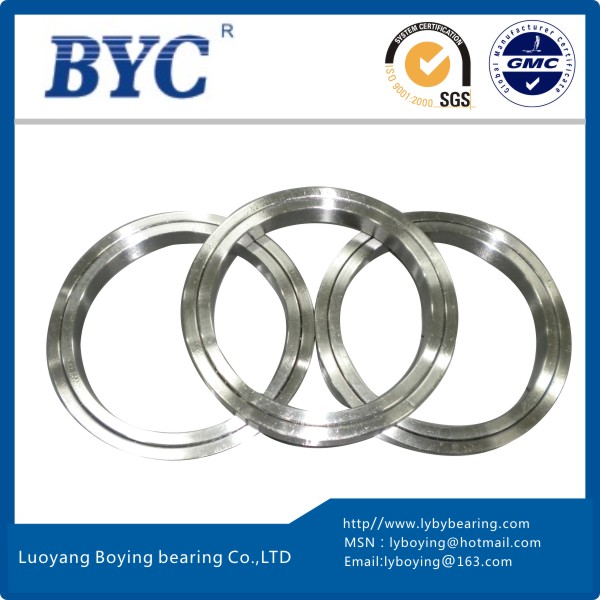

Product Features	BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
Series Introduction	SX standard type is a bearing similar to a RB standard type. The two separable outer rings are connected by locking ring
Series Model No.	SX011814,SX011818,SX011820,SX011824,SX011828,SX011832,SX011836,SX011840,SX011848,SX011860,SX011868,SX011860,SX0118/500
Applications	Product Application ?Industrial Robotic arm,Reducer drive ?precision Turntable,NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ? Aviation equipment,Military radar etc

D . Installation for Cross roller Bearings
Installation for Cross roller Bearings-Click Here
