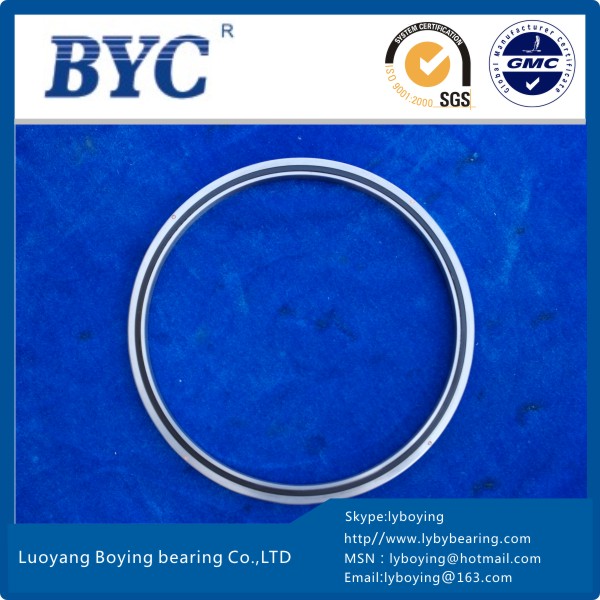

RA11008 UUCC0 (dxDxB:110x126x8mm) Crossed Roller Bearings|Robotic Bearings|BYC

Author： Release time：2016-05-24 Browse times：2988

RA11008 UUCC0 (dxDxB:110x126x8mm) Crossed Roller Bearings\|Robotic Bearings\|BYC
A . Crossed Roller Bearings Parameters
Brand-	BYC
Model number-	RA11008 UUCC0
Inner ring(mm)-	110
Outer ring(mm)-	126
Width(mm)-	8
Weight(Kg)-	0.15
Materials-	GCR15/GCR15SiMn
Precision-	P5/P4/P2
Lubrication-	Grease lubrication
Rotating part-	Inner Ring Rotation
Load direction-	Multi-load
Structure-	Outer ring split

B . RA11008 Crossed Roller Bearings Specification Sheet

Model Number	Main dimensions						Mounting dimensions		Basic load rating (radial)		weight
	Inner ring d (mm)	Outer ring D(mm)	Roller pitch circle dp(mm)	Width B(mm)	Greasing hole φ	Chamfer r(min)	ds	Dh	C kN	C0 kN	Kg
RA11008	110	126	117	8	1	0.5	113.5	120.5	7.45	15	0.15

C . RA type Crossed Roller Bearings Details
Product Features	BYC Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
Series Introduction	RA thin type is a small and light weight bearing with a very thin wall thickness. It carries heavy loads. Therefore, the bearing housing and pressure flange can be light weight. It is being used in rotary locations such as in robot hands. The outer rings of the RA thin type are separable and fixed by special rivets.
Series Model No.	RA5008, RA6008, RA7008, RA8008, RA9008,RA10008,RA11008,RA12008,RA13008,RA14008,RA15008,RA16013,RA17013,RA18013,RA19013,RA20013
Applications	Product Application ?Industrial Robotic arm,Reducer drive ?precision Turntable,NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ? Aviation equipment,Military radar etc

D . Installation for Cross roller Bearings
Installation for Cross roller Bearings-Click Here
