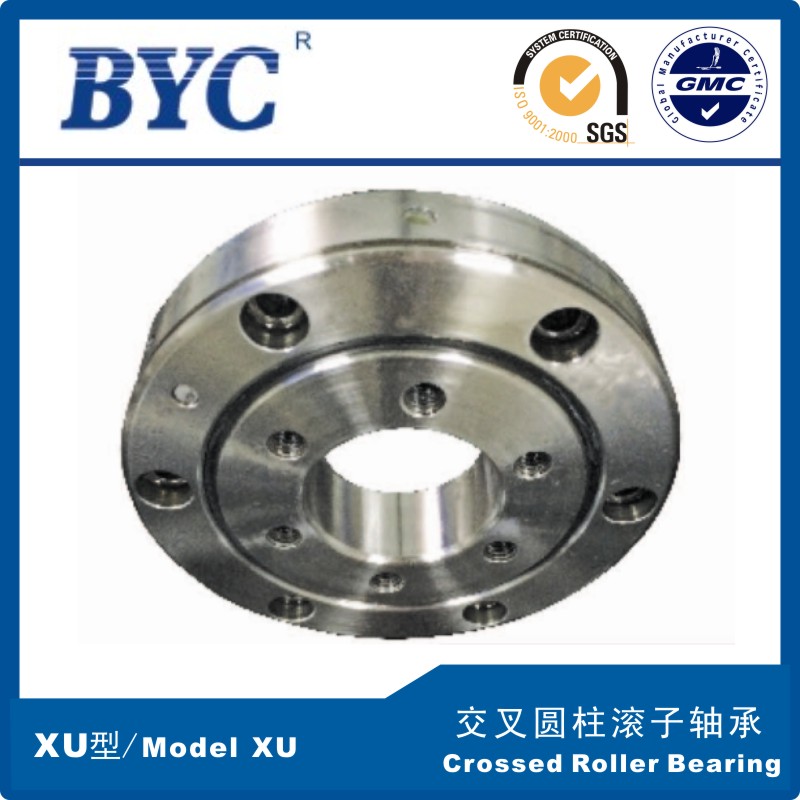

Model XU (Integrated Outer/Innner Ring,with Mounting Holes)
Starting quantity：1件
Product Feature …
ONLINEProduct Feature | BYC- Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads. | ||||||||||
Series Introduction | Model XU (Integrated Outer/Innner Ring,with Mounting Holes) With integrated inner and outer ring. It is being used in cases where high rotational accuracy of both the inner and outer rings is required. | ||||||||||

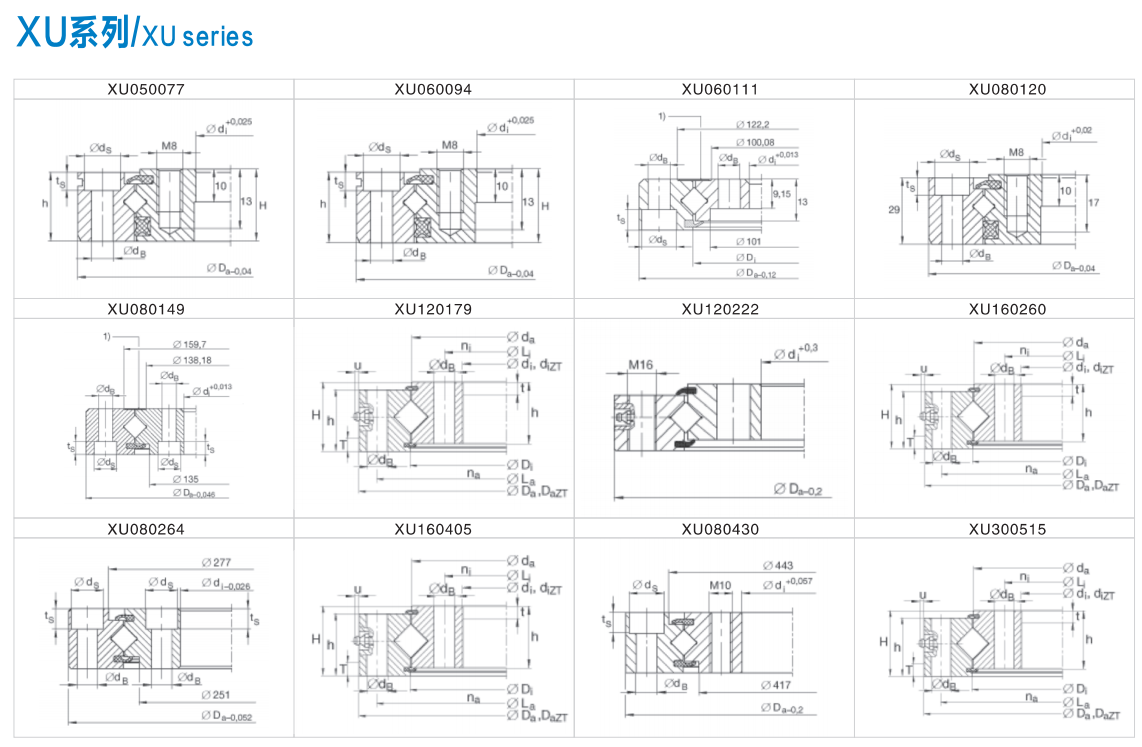

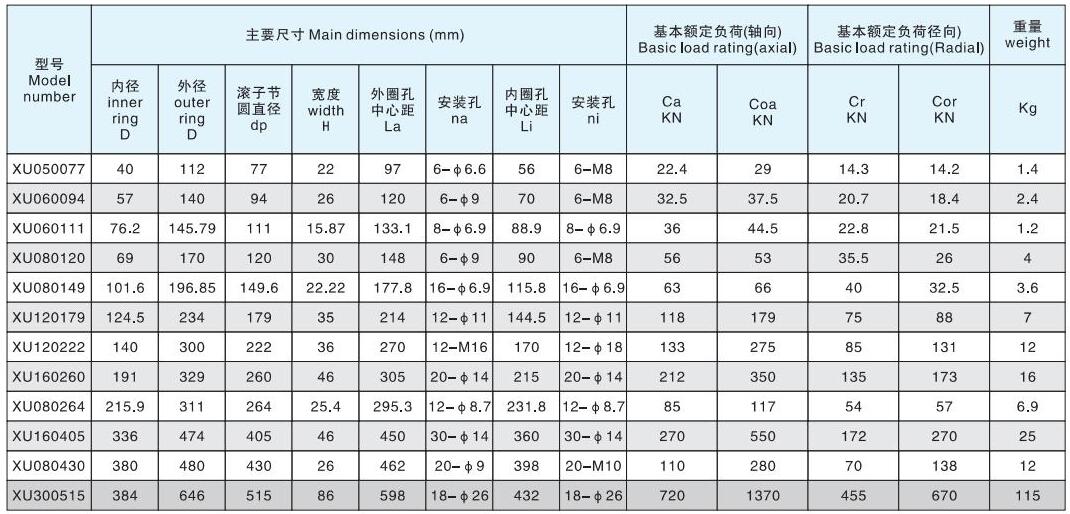

| Series Model No. | (Click the link below to view detailed parameters of the model) XU050077, XU060094, XU060111, XU080120, XU080149, XU120179, XU120222, XU160260, | ||||||||||
| Application | ?Industrial Robotic arm,Reducer drive ?precision Turntable,NC rotary table ?Rotation part of Machine tools ?Inspection instrument,Medical equipment ? Aviation equipment,Military radar etc | ||||||||||
3D Model of Crossed Roller Bearing and YRT Rotary Table Bearing for Robotic and CNC design,The link is:
http://yun.baidu.com/share/home?uk=35432805&view=album
